Atlas Single Channel Focus Control – with Mobile App Controller

Atlas Single Channel Focus Control – with Mobile App Controller


$1,474.50


SKU: 62-155-0004

Atlas Single Channel Wireless Remote Focus with Mobile App Controller

Atlas Professional Wireless Focus Control Bundle that Grows with You

This is a great inexpensive way to get into a professional remote focus that delivers great performance and features now, and grows with you into a complete lens control system (focus, iris, zoom) and with upgradeable wireless and wired controller options.

The Atlas motor is a completely self-contained remote, no brain or extra basestation: the entire remote is within the motor housing. Slide it onto rails (or better yet pick up the Rhino Mount, the smallest motor mount rail available). The Eclipse Mobile App is built from the ground up as a production-class wireless hand unit for your compatible iPhone or Android mobile device. Together they deliver a great wireless follow focus solution. Both the controller and the Atlas motors can be expanded to include additional lens control (iris, zoom), a full hardware hand unit, and advanced camera control including camera run/stop, remote camera settings, and more.

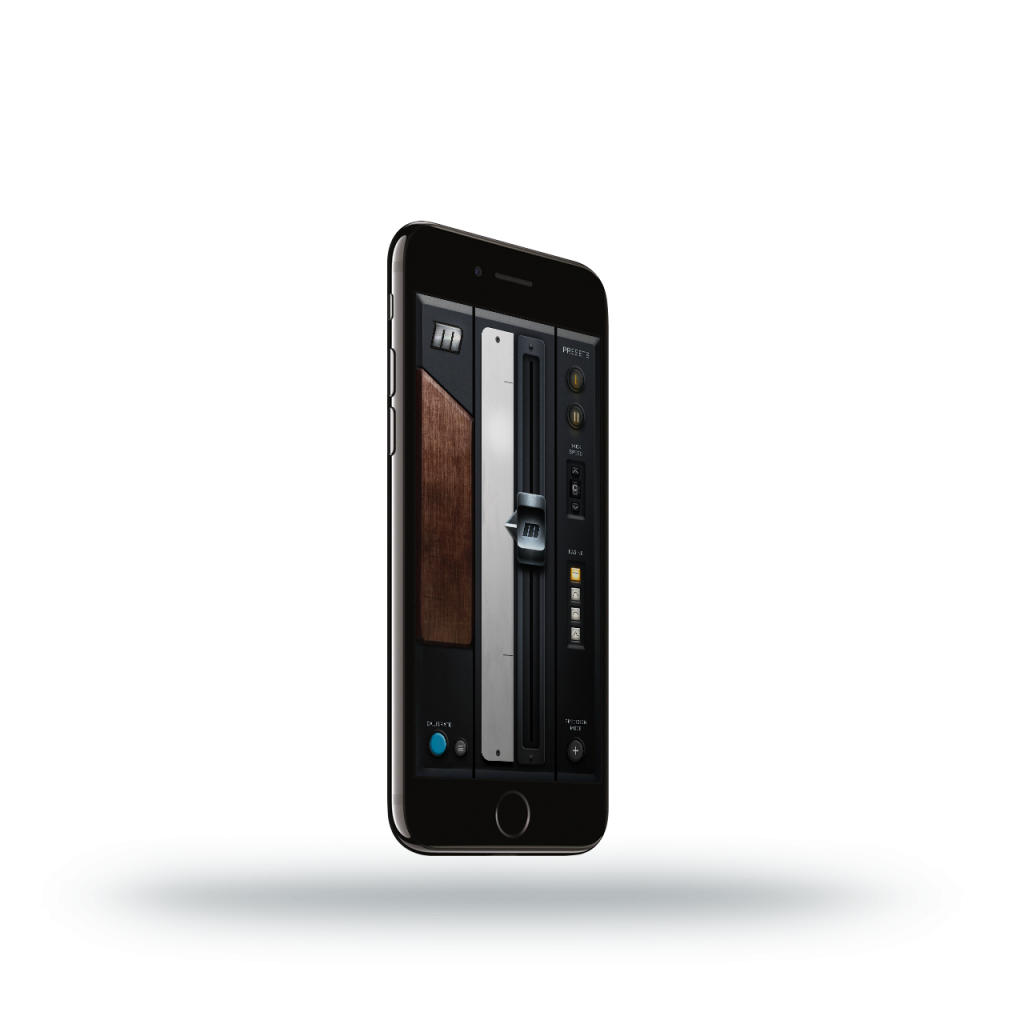

The Eclipse Mobile App for Atlas

The Eclipse Mobile App is built from the ground up as a production-class wireless hand controller for your compatible iPhone or Android mobile device. The visually stunning interface, intuitive controls, and responsive performance make it a great remote unit that doesn't require any added hardware. the Eclipse Mobile App also includes advanced features you would expect in a high-end system:

- Responsive focus control slider

- "Precision Mode" to expand focus to a a portion of the focus scale for more precise focusing

- Set soft focus points and automatically rack between them while setting both speed and ramp curve

- Calibrate motor from the app

- View and configure Atlas motor settings

- Update Atlas firmware

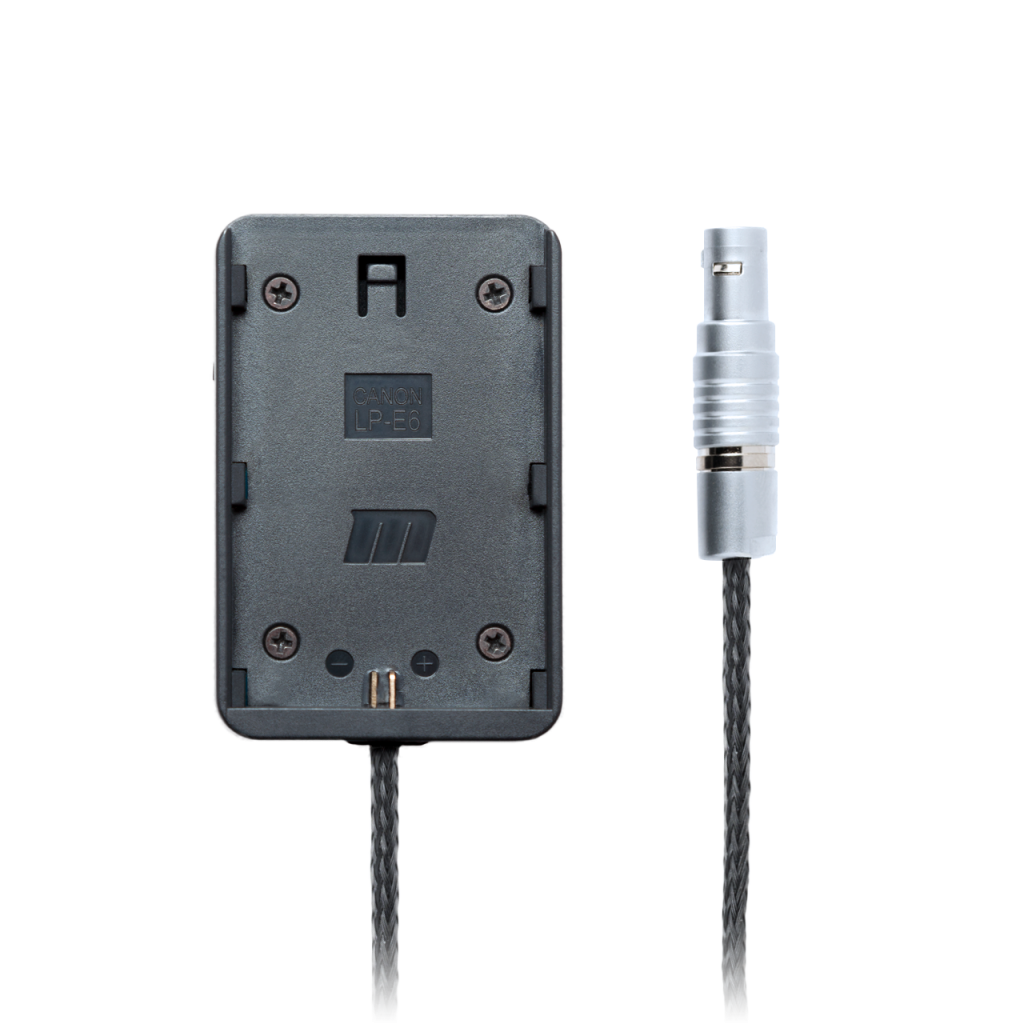

powerDock for Eclipse

An inexpensive solution also needs an inexpensive power source. powerDock enables you to use standard Canon LP-E6 or compatible batteries to power your Atlas motor while delivering professional performance and precision. Use the batteries you probably already own to lower the entry cost. As your needs change, you can add a p-tap or other cable for using higher capacity batteries.

Atlas motors

Remote focus and lens control are no longer a 'special case' add-on. Wireless Focus, iris, zoom, and camera control are now essential to match the pace and fast changes of today's productions. Atlas motors are the first smart motors that contain the entire remote inside just the motor housing. It's the smallest and lightest remote available anywhere. You can add up to 3 channels simply by daisy chaining additional motors. Atlas speaks multiple languages (RF, WiFi, CAN, and s.bus) which means you have control whether you are operating, at the monitor in video village, on a drone, or working from a gimbal. Powerful enough for cinema or still lenses, get the precision and reliability only Atlas delivers.

Product Features

Key Product Features Include:
  • Works with virtually any camera and lens (cinema and appropriately geared still photo lenses)
  • Wireless ready
  • No external brain/MDR required
  • Auto and Manual calibration
  • One-button push for auto calibration
  • Adjustable torque
  • Onboard LED and OLED for visual confirmation of status, configuration
  • Rotating ports simplify cable and rigging
  • Hemo-style connectors eliminate cable mismatch
  • Wide selection of add-on controllers: from solo op fingerwheel, mini FIZ, wireless remote, drone
  • Included Eclipse Mobile App for configuration, wireless remote focus control
  • Mission Control ready (display real-time focus information on monitor, additional equipment required)
  • MetaTouch lens discovery and configuration for fast lens changes
General
Power Material Dimensions Weight
12VDC to 18VDC Aircraft Grade Aluminum L: 96mm x W: 29mm x D: 71mm 238 Grams
Connectors
Connector 1 Eclipse Net Power and Communications
Connector 2 Eclipse Net Power and Communications
Connector 3 Mini Control Port S.Bus
Rigging
Rod Clamp Lens Gear Run/Stop Capable Clamp Style
15/19 mm 0.8 Yes Removable
Other
WiFi RF NFC Display Audio Firmware Upates Warranty
Yes 2.4Ghz Yes OLED Yes Click Here to Check 1 Year
What's Included with this Kit:
Qty Product Description SKU:
1 Atlas Smart Motor 2-155-0001
1 PowerDock for Eclipse 2-178-0002
1 Eclipse Mobile App Available soon from Google Play and App Store
